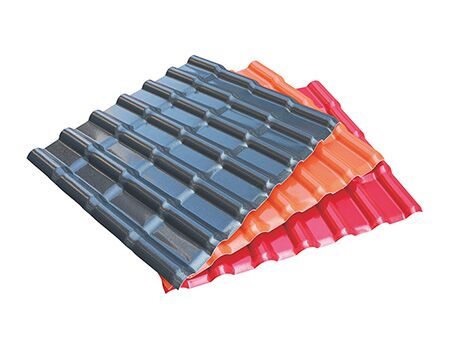

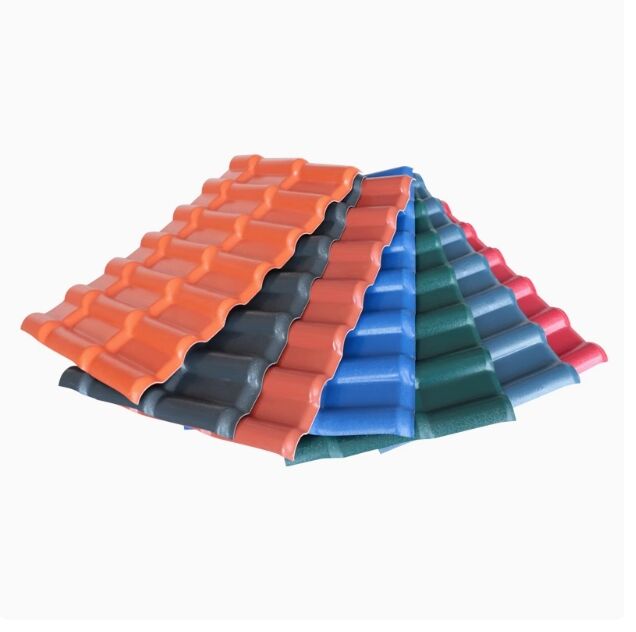

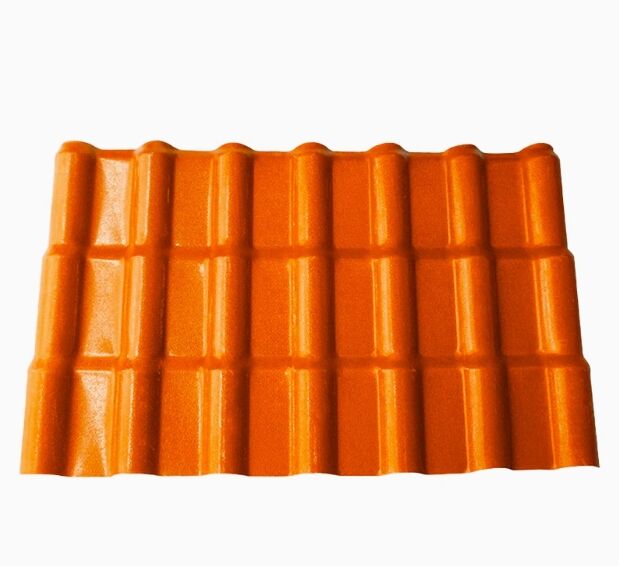

ASA SPANISH ROOF TILE

ASA SPANISH ROOF TILE

其他信息

Thickness	2.5mm/3.0mm
Length	Customizable based on multiples of the standard length
Width	1050mm
Effective Width	960mm
Wave Width	160mm
Wave Height	30mm
Pitch	219mm

Applicable Scope: Perfect for a variety of settings such as flat roof modifications, villas, garden buildings, warehouses, barns, retail markets, solar panels, and other roofing areas.

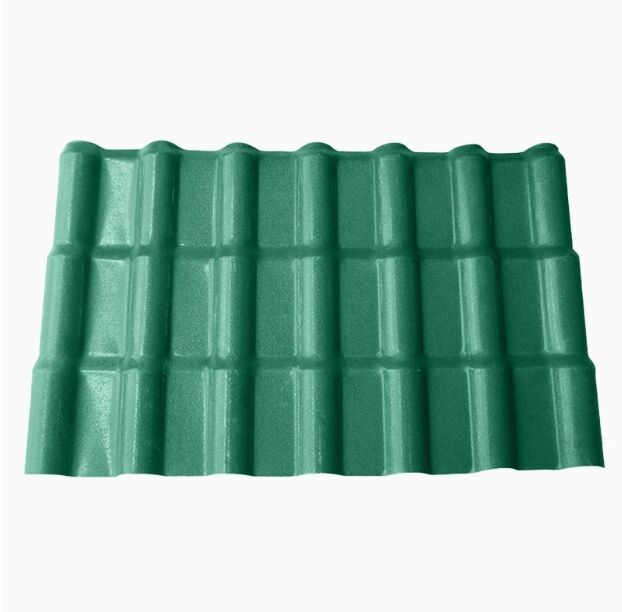

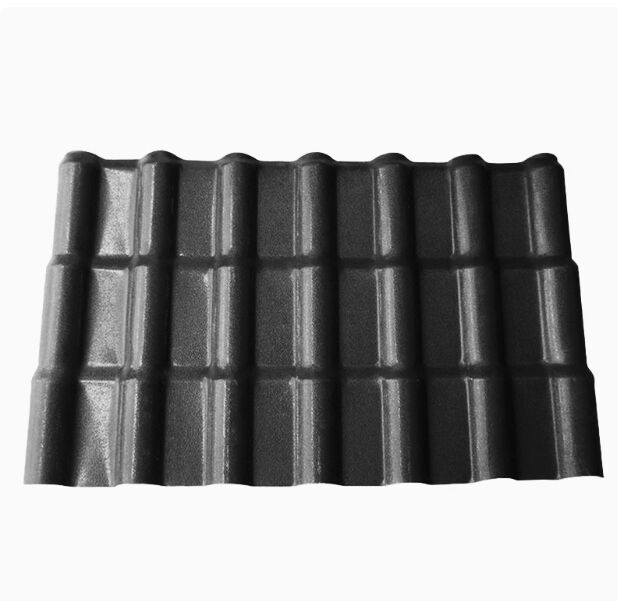

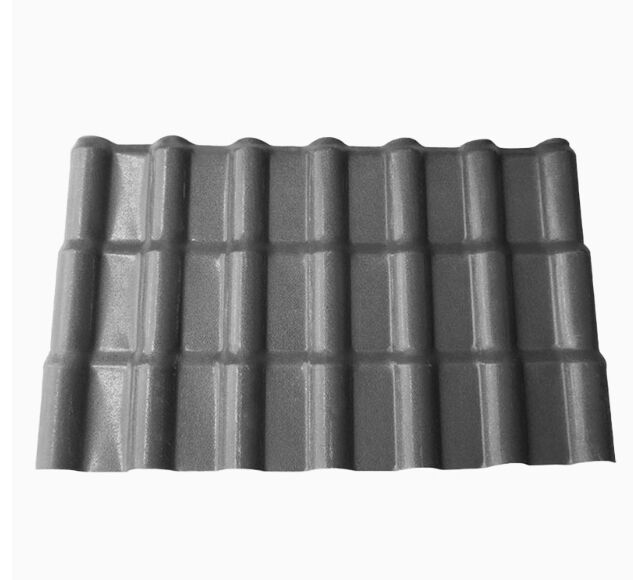

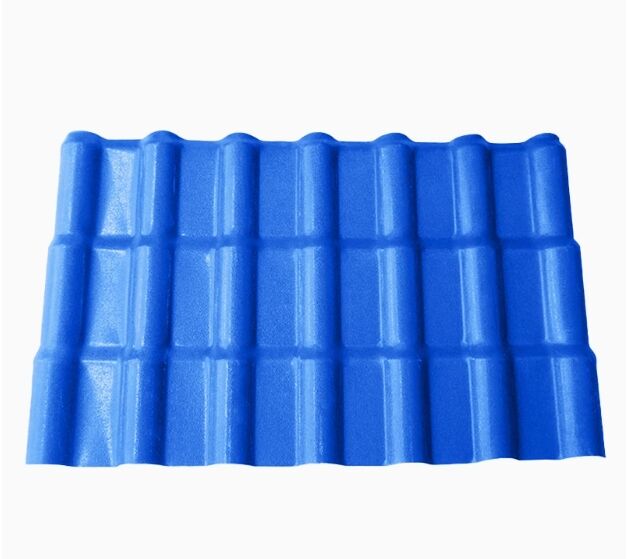

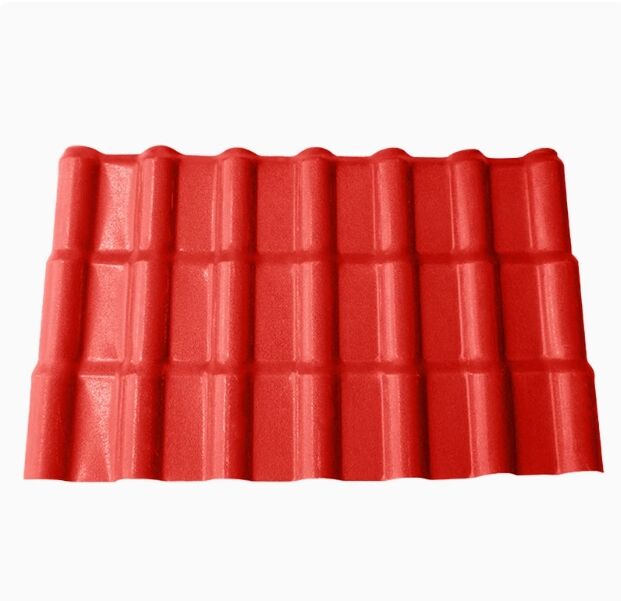

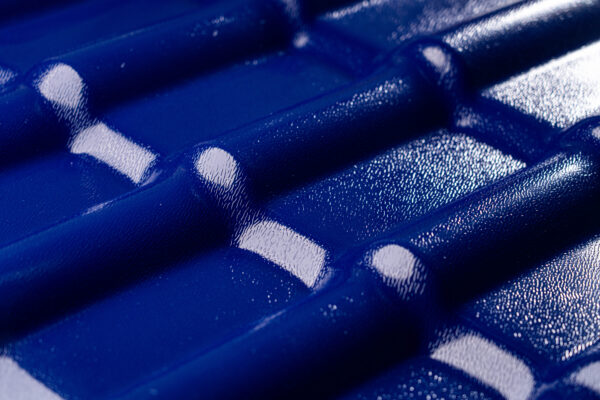

Available colors

ASA SPANISH ROOF TILE

No.	Name	Image	Length (mm)	Width (mm)	Effective Length (mm)	Application
1	Main Tile		1050	1050	960	Roofing
2	Standard Tile		1050	1050	960	Main Ridge Usage
3	Double Ribbed Tile		1050	1050	960	Main Ridge Usage
4	Ribbed Tile		1050	1050	960	Sloped Ridge Usage
5	Double Ridge Tile		1050	1050	960	Sloped Ridge Usage
6	100 Type Tile		1050	1050	960	Eaves Flashing
7	Flat Tile		1050	1050	960	Eaves Flashing
8	Small Ridge Tile		1050	1050	960	Eaves Flashing
9	90 Degree Ridge Tile		1050	1050	960	Eaves Flashing
10	120 Degree Ridge Tile		1000	1050	960	Eaves Flashing
11	135 Degree Ridge Tile		1000	1050	960	Gable Eaves Closure
12	Left and Right Ridge Tile		150×98	1050	960	Gable Flashing
13	Left and Right Ridge Tile		150×98	1050	960	Dormer Gutter Flashing
14	J-Pin Tile		1050	1050	960	Eaves Closure Board
15	Mountain Ridge Tile		1050	1050	960	Gable Flashing
16	Flat Tile		1050	1050	960	Eaves Closure Board
17	Standard Ridge Tile		500	480	960	Gable Eaves Closure
18	Square Tile		300	90	960	Eaves Flashing
19	Double Pin Tile		200	100	960	Main Ridge End Cap Usage
20	Small Pin Tile		300	300	960	Main Ridge End Cap Usage
21	Three Pin Tile		300	240	960	Sloped Ridge Usage
22	Four Pin Tile		180×180×180×180	300	960	Sloped Ridge Usage
23	T-shaped Pin Tile		570×285	300	960	Ridge Connection Usage
24	Tile Pin		250×400	300	960	Ridge Curved Corner
25	Standard Pin Tile		250×600	300	960	Ridge Curved Corner
26	Elbow Tile		450×450	300	960	Ridge Curved Corner
27	ASA Ridge Tile		380×240	300	960	Roof Decoration
28	PC Synthetic Resin Tile		1100×1050	2200×1050	960	Roof Decoration
